66/80cc Piston #2
Located within the cylinder body and crankcase, the 2-Stroke Piston #2 is a crucial engine component. Connected to a connecting rod, this part moves in response to engine combustion. This results in crank movement via the transfer of force generated and in turn propels your bike forward. Featuring a 42mm diameter and 5mm skirt, this piston is compatible with a wide variety of 2-stroke engines.
Part #22 On the Crankcase Diagram
Package includes
66/80cc Piston #2 Part Number (See Parts Manual): 2-25 or D2-35
Only compatible with the Flying Horse Bike Engine Kit*

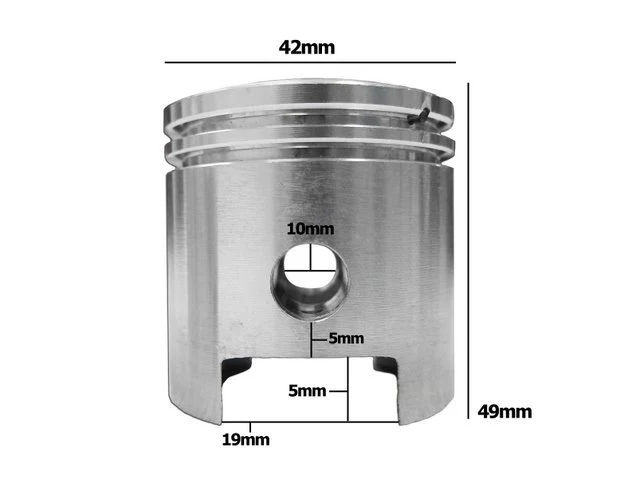

Piston Measurements:
Height: 49mm
Width: 42mm
Skirt Width: 19mm
Skirt Height: 5mm
Piston Pin Port: 10mm
Height from Skirt to Piston Pin: 5mm
*As there are many different pistons for each model of engine, please read the measurements of our pistons and reference your existing piston to ensure a proper fit.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
66/80cc Piston #2
66/80cc Piston #2
Located within the cylinder body and crankcase, the 2-Stroke Piston #2 is a crucial engine component. Connected to a connecting rod, this part moves in response to engine combustion. This results in crank movement via the transfer of force generated and in turn propels your bike forward. Featuring a 42mm diameter and 5mm skirt, this piston is compatible with a wide variety of 2-stroke engines.
Part #22 On the Crankcase Diagram
Package includes
66/80cc Piston #2 Part Number (See Parts Manual): 2-25 or D2-35
Only compatible with the Flying Horse Bike Engine Kit*
Piston Measurements:
Height: 49mm
Width: 42mm
Skirt Width: 19mm
Skirt Height: 5mm
Piston Pin Port: 10mm
Height from Skirt to Piston Pin: 5mm
*As there are many different pistons for each model of engine, please read the measurements of our pistons and reference your existing piston to ensure a proper fit.
Original: $11.95
-70%$11.95
$3.58Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Located within the cylinder body and crankcase, the 2-Stroke Piston #2 is a crucial engine component. Connected to a connecting rod, this part moves in response to engine combustion. This results in crank movement via the transfer of force generated and in turn propels your bike forward. Featuring a 42mm diameter and 5mm skirt, this piston is compatible with a wide variety of 2-stroke engines.
Part #22 On the Crankcase Diagram
Package includes
66/80cc Piston #2 Part Number (See Parts Manual): 2-25 or D2-35
Only compatible with the Flying Horse Bike Engine Kit*
Piston Measurements:
Height: 49mm
Width: 42mm
Skirt Width: 19mm
Skirt Height: 5mm
Piston Pin Port: 10mm
Height from Skirt to Piston Pin: 5mm
*As there are many different pistons for each model of engine, please read the measurements of our pistons and reference your existing piston to ensure a proper fit.
