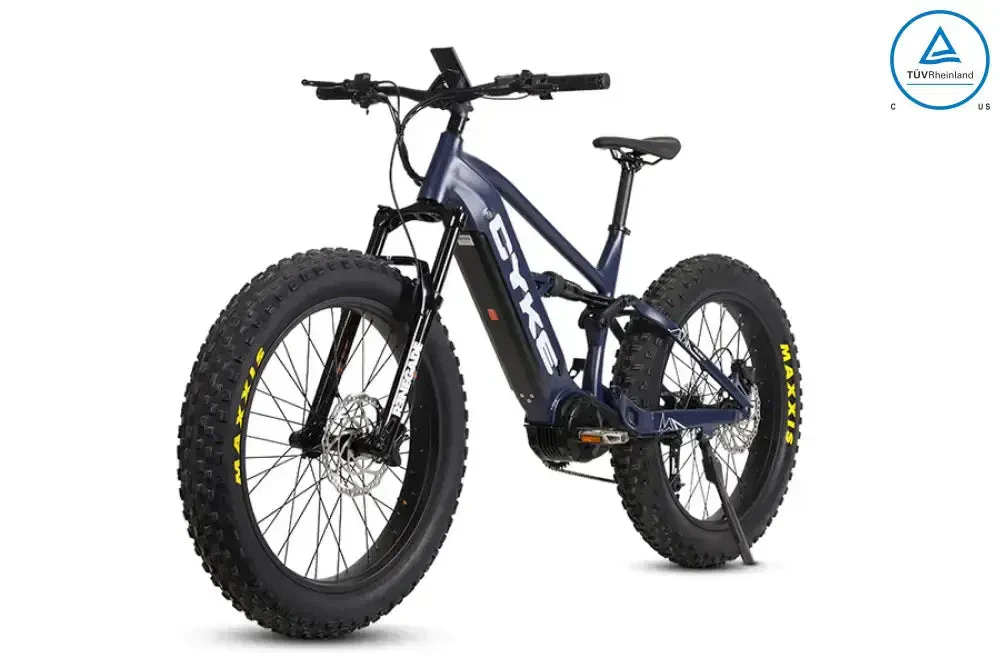

The e-JOE Falcon X is a premium full-suspension eBike engineered for both rugged trail riding and comfortable urban adventures, representing the pinnacle of electric mountain biking performance. It features a robust full suspension system, including an RST Renegade front fork and a RockShox RS-DELUXE SELECT-C1 rear shock, which together provide superior control, comfort, and stability, allowing the rider to confidently absorb shocks across diverse and challenging terrain.

1. Full Suspension System: Features an RST Renegade front fork and a RockShox RS-DELUXE SELECT-C1 rear shock for superior comfort and control on all terrains.

2. Powerful Mid-Drive Motor: Equipped with a 1000W BAFANG mid-drive motor, providing up to 1100W peak output and a top speed of 28 MPH.

3. Long-Range Battery: Uses a 48V/20Ah (960Wh) BAFANG battery with premium LG cells, capable of up to 65 miles per charge.

4. Torque Sensor Technology: Provides smooth, natural, and efficient power delivery based on pedaling force.

5. High-Performance Braking: Features TEKTRO HD-E730 hydraulic disc brakes with 4-piston calipers and 203mm rotors for reliable stopping power.

6. All-Terrain Tires: Runs on Maxxis Minion FBF (front) and FBR (rear) tires, designed for exceptional traction and low rolling resistance.

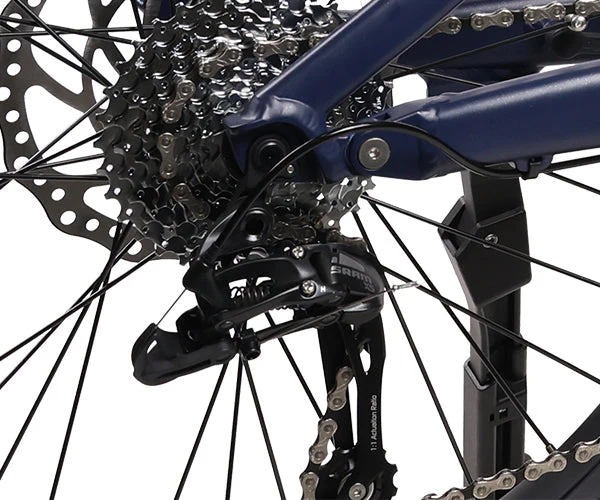

7. Reliable Gearing: Includes a SRAM 9-speed gear system (SL-X5 shifter and RD-X5 derailleur) for precise and smooth shifting.

Powering this machine is a high-performance 1000W BAFANG mid-drive motor, capable of reaching an 1100W peak output and a top speed of 28 mph. Energy is supplied by a 48V/20Ah (960Wh) BAFANG battery with reliable LG cells, offering an impressive range of up to 65 miles per charge. For safety, the bike is equipped with powerful TEKTRO hydraulic 4-piston disc brakes, and the intuitive torque sensor ensures a smooth, natural-feeling assist that precisely matches the rider's pedaling effort.



PRODUCT SPECIFICATIONS



Specification	Detail
Motor	1000W BAFANG Mid-Drive (1100W Peak)
Battery	48V/20Ah (960Wh) BAFANG w/ LG Cells
Max Speed	28 MPH (Class 3)
Range	Up to 65 miles (dependent on assist level)
Assist Sensor	Torque Sensor
Brakes	TEKTRO HD-E730 Hydraulic Disc, 4-Piston, 203mm Rotors
Gearing	SRAM 9-speed (SL-X5 Shifter, RD-X5 Derailleur)
Front Suspension	RST Renegade Fork (80–120mm Travel)
Rear Suspension	RockShox RS-DELUXE SELECT-C1 (190mm x 45mm iDebonAir+)
Tires	Maxxis Minion FBF/FBR
Frame Material	Italian Flat-Welded Aluminum Alloy
Colors	Dark Blue / Desert Yellow
Frame Sizes	17" Frame / 19" Frame
Max Load Capacity	300 lbs
Net Weight	82.7 lbs
Box Dimension	69.7 x 33.5 x 11.6 in
