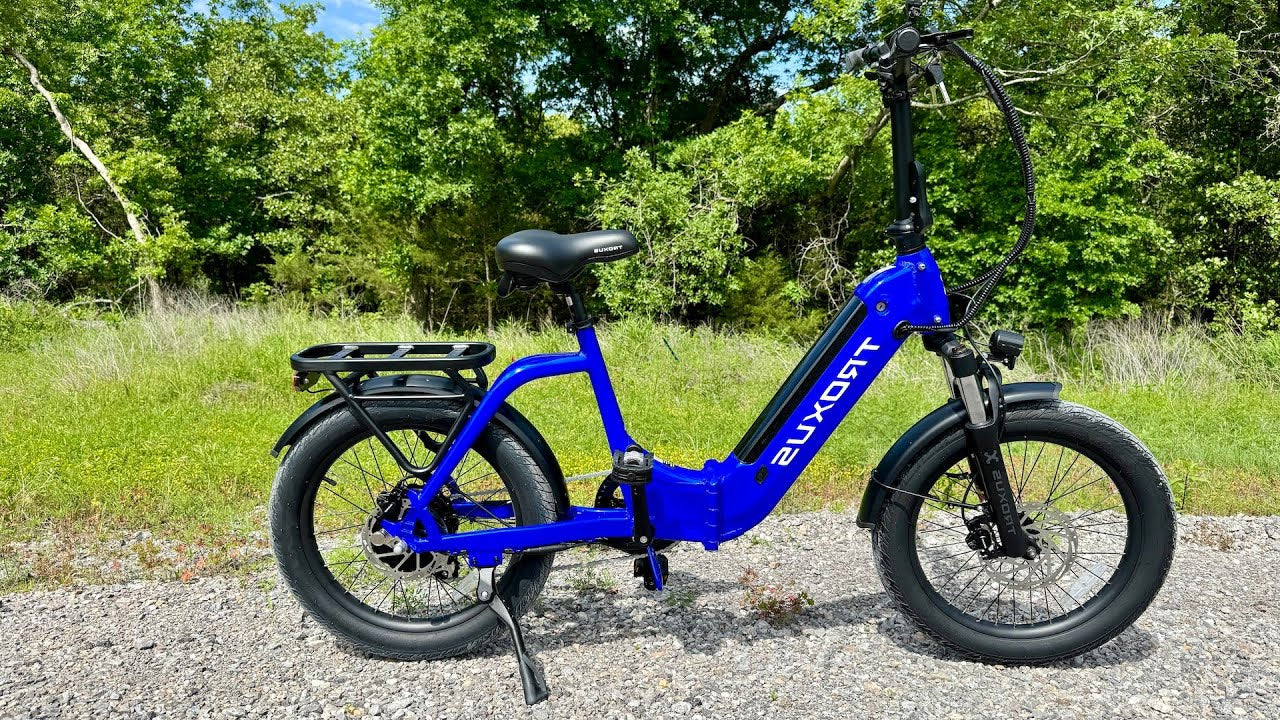

The Troxus Lynx Folding E-bike is marketed as the "ultimate pocket rocket," designed to simplify daily commutes and maximize convenience through its compact, foldable design. It features a lightweight 6061-T6 aluminum step-thru frame that minimizes space concerns, allowing it to be easily stored in small apartments, in the back of a car, or taken onto public transportation for seamless "last mile" travel. Powering this bike is a robust 48V/500W Jiabo hub-drive motor that delivers 65Nm of torque, enabling riders to effortlessly cruise and climb.

• Lightweight and Foldable Frame: Features a lightweight 6061 aluminum folding step-thru frame for superior portability and storage.

• Powerful Hub Motor: Equipped with a 48V/500W Jiabo hub-drive motor delivering 65Nm of max torque for strong cruising and climbing.

• Extended Range Battery: Includes a removable 48V 10Ah (480Wh) battery with Samsung® cells, offering a range of up to 45 miles per charge.

• Superior Stopping Power: Features Tektro® Hydraulic Disc Brakes with brake sensors for reliable and safe stopping in all conditions.

• UL-2849 Certified: Ensures safety and reliability with comprehensive UL-2849 certification.

• Versatile Drivetrain: Utilizes a Shimano® 8-Speed Altus shifting system to match various riding terrains and needs.

• Exceptional Warranty: Backed by an exclusive 5-year/5,000 Mile Fender to Fender Limited Warranty and Total Care+ Program.

The Lynx Folding E-bike is built for a reliable and safe riding experience, evidenced by its UL-2849 certification. It is equipped with a high-capacity 48V 10Ah (480Wh) removable battery, constructed with reliable Samsung® cells, which provides an impressive range of up to 45 miles per charge. Safety features include Tektro® Hydraulic Disc Brakes for excellent stopping power and modulation, along with integrated front and rear lights. The bike is also versatile, incorporating a Shimano® 8-Speed drivetrain, a heavy-duty rear rack, and fenders, and is backed by Troxus’s exclusive 5-year/5,000 Mile Fender to Fender Limited Warranty.

Product Specifications



Category	Specification
E-System
Motor	Jiabo® 48V/500W Hub-Drive Motor, 65Nm Max. Torque
Battery	48V / 10Ah (480Wh) w/ Samsung Cells (UL-2771 Certified)
Max Speed	Up To 20 MPH
Range	Up To 45 Miles Per Charge (10 Ah model)
Pedal Assist	0~5 Level Pedal Assist
Display	Color Display, w/ Multi-Function Remote
Throttle	Thumb Throttle on Handlebar
Components & Frame
Frame	6061-T6 Aluminum Folding Step-Thru Frame
Brakes	Tektro® Hydraulic Disc Brakes, w/ Brake Sensors (180mm / 160mm rotors)
Rear Derailleur	Shimano® RD-M310-L Altus, 8-Speed
Cassette	Shimano® 8-Speed, 12-32T
Tires	20"x3.0"
Fork	Front Suspension Fork, 50mm Travel
Net Weight	62 lbs
Maximum Load	300 lbs
