The EUNORAU FAT-HD is a formidable all-terrain electric bike engineered for power and off-road capability, built around the dominant Bafang BBSHD 1000W mid-drive motor. This powerful system delivers up to 1500 watts of peak power and an immense 160Nm of torque, allowing riders to effortlessly conquer steep hills, deep sand, snow, and mud. With a top speed reaching up to 28 MPH (45 km/h) and intelligent 0-5 level pedal assist, the FAT-HD provides a thrilling and versatile riding experience for serious outdoor enthusiasts and hunters.



• Bafang BBSHD 1000W Mid-Drive Motor: Delivers exceptional torque (up to 160Nm) and high peak power (over 1500W) for superior climbing.

• All-Terrain Fat Tires: Equipped with 26" x 4.0" Kenda Krusade Sport tires for reliable grip on snow, sand, mud, and gravel.

• Front Suspension: Features an RST GUIDE 100mm travel fork to enhance comfort and control on rugged terrain.

• Hydraulic Disc Brakes: Uses PROMAX hydraulic disc brakes (180mm/160mm rotors) for sensitive, consistent, and powerful stopping.

• Long-Range Battery: Standard 48V/15.6Ah Lithium-Ion battery offers a range of 40-60 miles per charge (with 25Ah upgrade available).

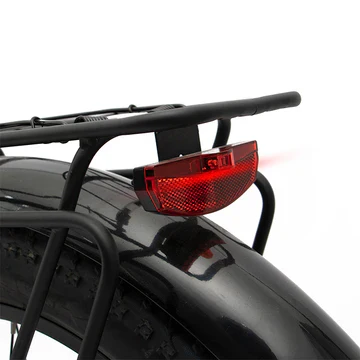

• Utility Ready: Comes standard with a rear pannier rack, metal fenders, and integrated LED lights.

• Drivetrain & Sensor: Shimano 7-speed gearing combined with a Bafang gear sensor ensures smooth, protected shifting.



Designed for rugged adventures, the FAT-HD features durable components and high utility accessories. It is equipped with oversized 26" x 4.0" Kenda Krusade Sport fat tires for superior traction and stability across diverse landscapes. Rider comfort is enhanced by the RST front suspension fork with 100mm of travel, effectively absorbing jarring bumps on rough trails. Furthermore, it includes commuting essentials like a robust rear pannier rack, metal fenders, integrated front and rear LED lights, and reliable PROMAX hydraulic disc brakes with motor cut-off sensors for swift, safe stopping power.



Product Specifications

Component	Detail
Motor	48V1000W BAFANG BBSHD Brushless Mid-Motor
Torque	160 N.m
Battery	48V/15.6Ah Lithium-Ion (upgradable)
Max Range	40–60 Miles (approx. 64 km)
Maximum Speed	28 MPH (45 km/h)
Frame	6061 Aluminum Alloy
Fork	RST GUIDE Suspension Fork, 100mm Travel
Brakes	PROMAX Hydraulic Disc Brakes (with motor cut-off)
Tires	Kenda Krusade Sport 26" x 4.0"
Gearing	Shimano Derailleur 7-Speed Freewheel
Payload Capacity	375 lbs (170 kg)
Display	500C LCD Display
Throttle	Thumb Throttle
Weight	~78.7 lbs (35.7 kg)
Recommended Height	5'7" ~ 6'4"
