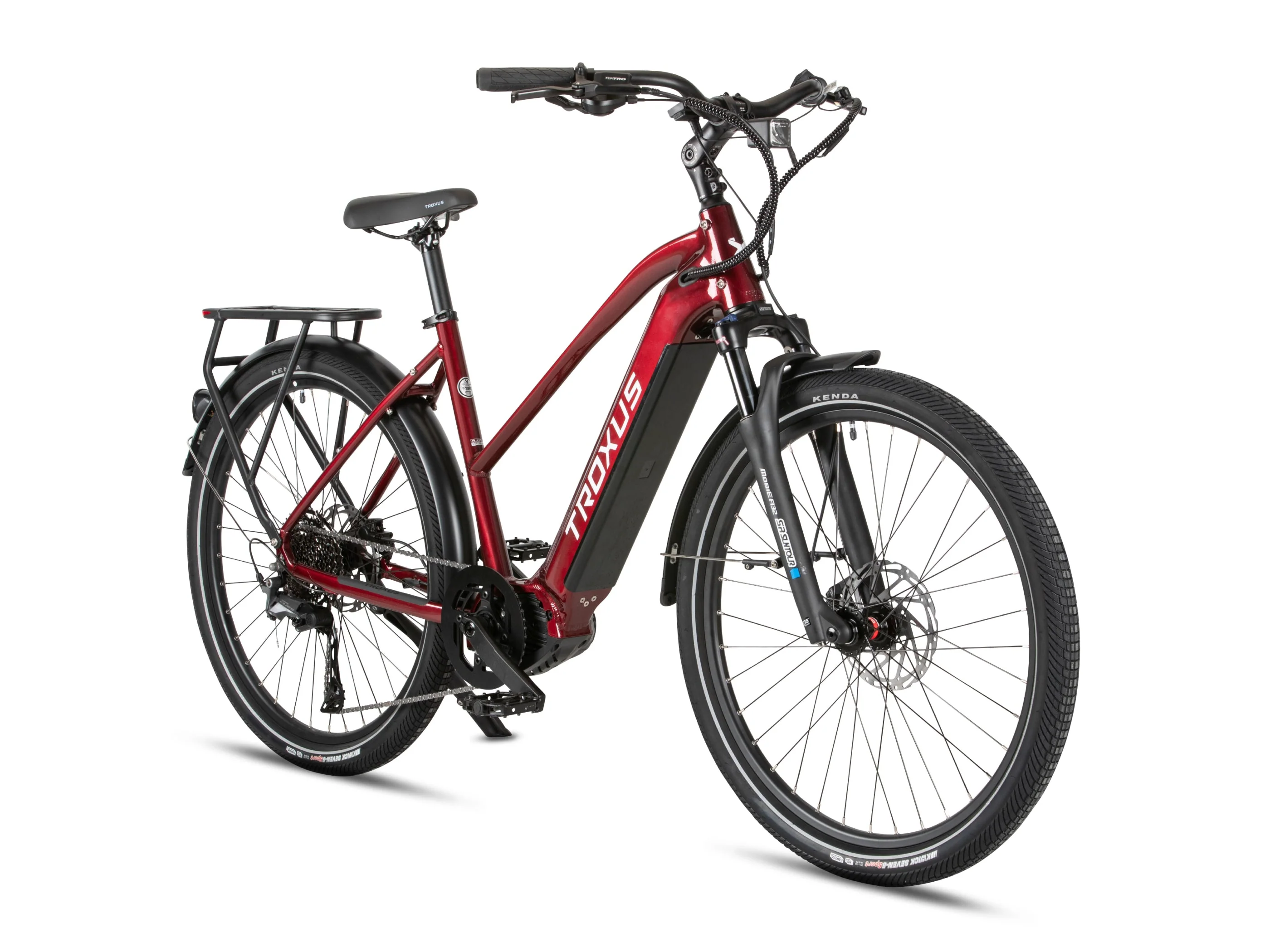

The Troxus Trax Mid-Drive E-Bike is a premium commuter designed for a refined, efficient, and comfortable riding experience, capable of reaching speeds up to 28 MPH (Class 3) via pedal assist. It features a powerful and efficient 500W Bafang Mid-Motor that delivers an impressive 130Nm of maximum torque, coupled with both torque and cadence sensors for intuitive and natural power assistance. This lightweight model, weighing just 61 lbs, is built around a stylish 6061 Aluminum Frame, available in both Low-Step and Mid-Step options, making it accessible and comfortable for a wide range of riders.

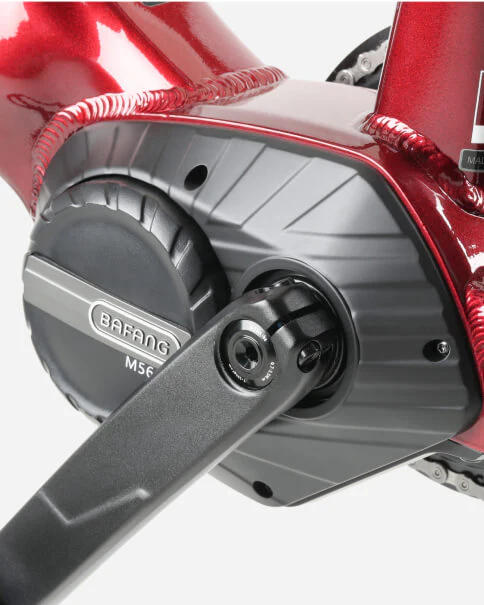

• Mid-Drive Performance: Features an efficient 500W Bafang Mid-Motor delivering high torque (130Nm) for superior climbing and power transfer.

• Speed & Range: Capable of Up To 28 MPH (Pedal Assist) and offers a range of Up To 60 Miles per charge from its 720Wh battery.

• Intuitive Sensing: Equipped with both Torque & Cadence Sensors integrated into the mid-motor for a natural, responsive ride feel.

• E-Bike Specific Drivetrain: Utilizes a reliable Shimano CUES 11-Speed system designed for flawless shifting under power.

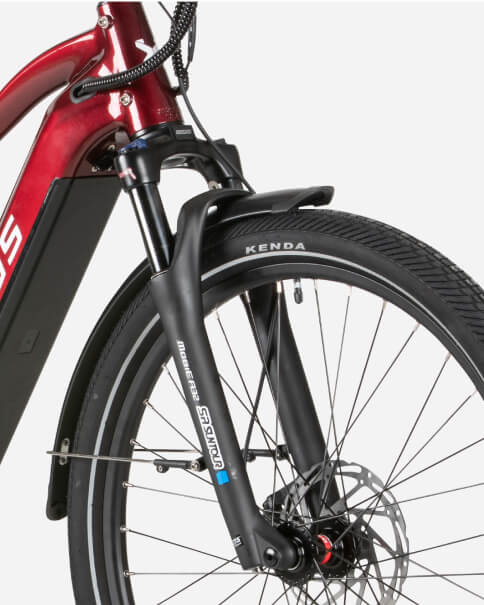

• All-Day Comfort: Includes a Suntour Mobie 32 Suspension Fork (75mm), adjustable stem, and ergonomic comfort grips.

• Safety Certified Power: Powered by a high-capacity, UL-2771 Certified 48V/15Ah (720Wh) Samsung Cell Battery.

• Secure Stopping: Fitted with high-performance Tektro Hydraulic Disc Brakes (180mm rotors) and safety-focused integrated lights.



This e-bike ensures all-day capability and control with its robust components. Power is supplied by a UL-2771 Certified 48V/15Ah (720Wh) battery built with Samsung cells, offering a significant range of up to 60 miles per charge. Drivetrain reliability is secured by the Shimano CUES 11-Speed system, which is specifically designed for e-bikes to handle shifting flawlessly even under full power. Comfort is optimized with a Suntour Mobie 32 Suspension Fork with 75mm travel, an adjustable stem, and a plush Selle Royal saddle, while safety is ensured by Tektro Hydraulic Disc Brakes with 180mm rotors and integrated 80 Lux front and rear lights.



Product Specifications



Component Category	Detail
Motor	Bafang® 48V/500W Mid-Motor, 130Nm Max. Torque
Battery	UL-2771 Certified / 48V/15Ah (720Wh) with Samsung® Cells
Max Speed (PA)	Up To 28 MPH (Pedal Assist) / Up To 20 MPH (Throttle)
Range	Up To 60 Miles Per Charge
Sensor	Torque & Cadence Sensors (Included in Mid-Motor)
Drivetrain	Shimano® CUES 11-Speed (11-45T Cassette)
Brakes	Tektro® Hydraulic Disc Brakes (180mm Rotors)
Frame	6061 Aluminum Frame (Low-Step & Mid-Step Options)
Fork	Suntour® Mobie 32 Suspension Fork, 75mm Travel
Tires	KENDA® 27.5"x2.2", W/ Reflective Stripes, Puncture-Resistant
Net Weight	61 lbs
Load Capacity	Maximum Load: 330 lbs
