The Troxus Trax Sport E-Bike is a sleek, lightweight, and fitness-focused commuter bike built for agility and speed in urban environments. Designed for riders who prioritize a streamlined aesthetic and easy maneuverability, it features a lightweight 6061-T6 aluminum frame, a rigid fork, and a low net weight of only 47 lbs, making it easy to carry upstairs or load into a vehicle. The bike is powered by a 50Nm Hub-Drive Motor, which delivers efficient boost for quick take-offs and confident city riding. It uses an internal 360Wh UL-2771 Certified battery and offers the option for a 252Wh range extender, addressing the needs of both daily commutes and longer excursions.



• Lightweight Design: Weighs only 47 lbs (Net Weight), making it ideal for urban portability and walk-ups.

• Performance: Features a 50Nm Jiabo® Hub-Drive Motor and a max speed of up to 25 MPH with pedal assist.

• Dual Sensor Modes: Includes a switchable system for Torque and Cadence sensors for customizable power delivery.

• Extended Range Option: Standard 360Wh UL-2771 Certified Battery offers up to 45 miles, with an optional 252Wh range extender available (up to 65 miles).

• Agile Commuting: Built with a Rigid Aluminum Fork and sporty geometry for fast, agile city handling.

• Stopping Power: Equipped with Tektro® Hydraulic Disc Brakes (180mm/160mm rotors) for reliable urban safety.

• Smart Integration: Features a Stem-Integrated Color Bluetooth Display for real-time stats and fitness app syncing.



The Trax Sport offers a sporty riding posture with a lightweight rigid fork and straight handlebars for agile handling, while safety and control are ensured with Tektro® hydraulic disc brakes. A key feature is the ability to seamlessly switch between Torque and Cadence sensor modes, allowing the rider to tailor the pedal assist response for either a smooth cruise or a responsive workout. The bike also includes a stem-integrated color Bluetooth display for real-time ride data and app syncing, and it comes standard with a MIK-compatible rear rack for easy cargo attachment, all backed by Troxus's extensive 5-Year Limited Warranty.



Product Specifications



Component/Feature	Detail

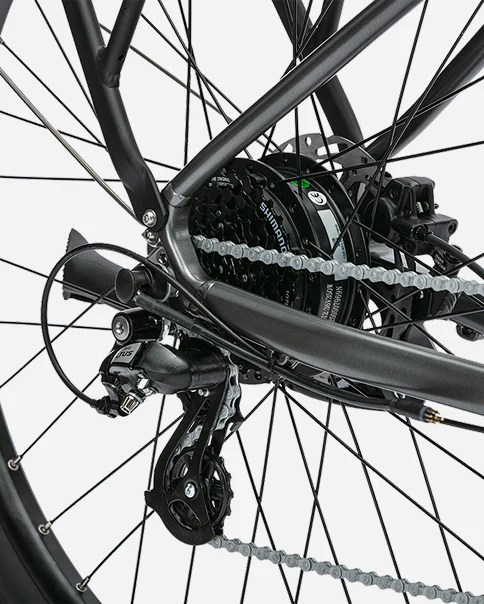

Motor	Jiabo® Hub-Drive Motor 36V/500W+ Peak Power, 50Nm Peak Torque
Battery	UL-2771 Certified 36V/10Ah (360Wh) Samsung® Cells, Removable
Max Speed	Up To 20 MPH (Throttle) / Up To 25 MPH (Pedal Assist)
Range	Up To 45 Miles (Standard) / Up to 65 Miles (w/ Range Extender)
Net Weight	47 lbs

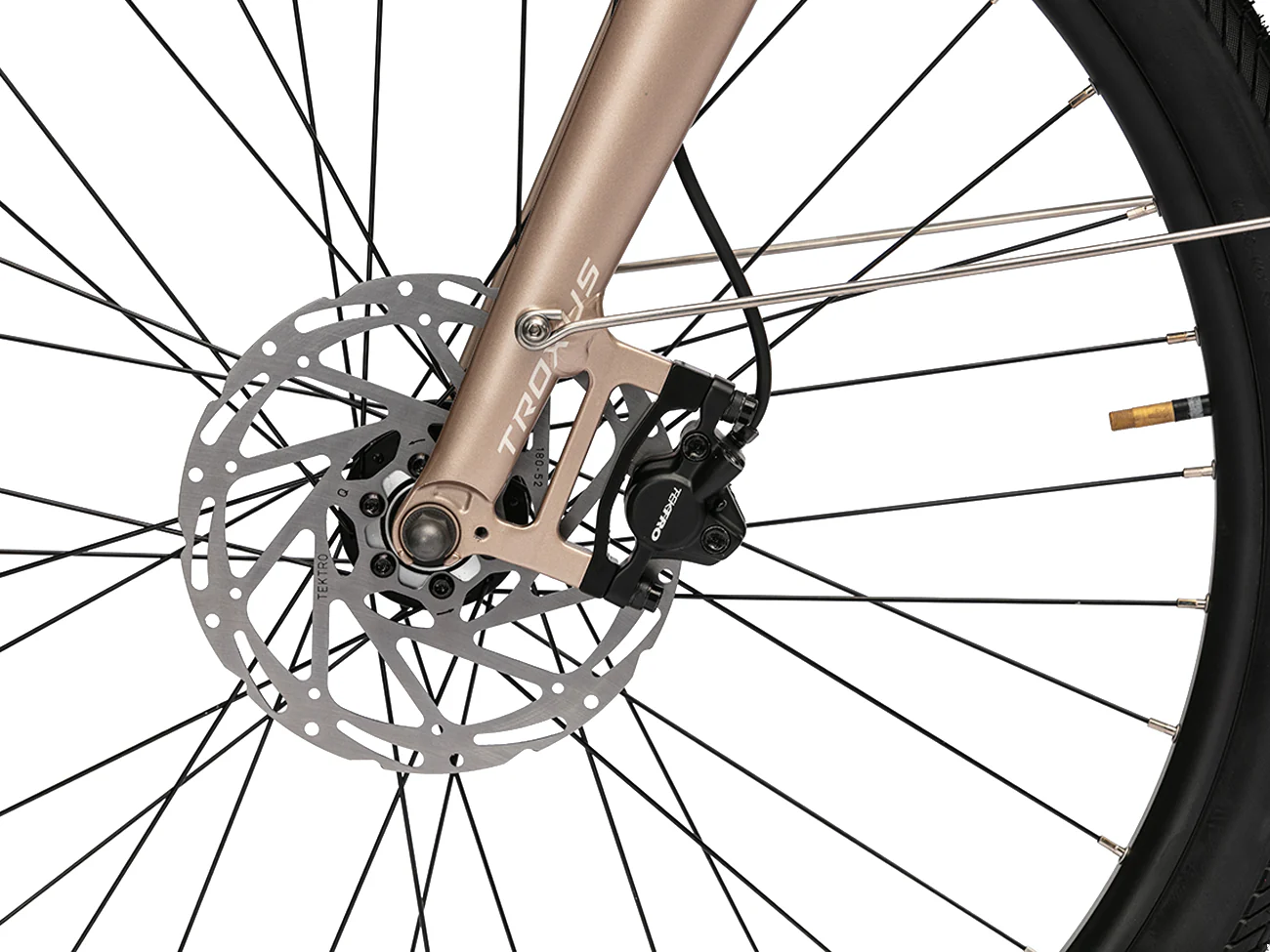

Brakes	Tektro® Hydraulic Disc Brakes w/ Brake Sensors (180mm / 160mm)
Tires	KENDA® K-1266 Urban 27.5"x1.75"
Display	Stem-Integrated Color Display, Bluetooth
Drivetrain	Shimano® Altus 8-Speed (12-32T Cassette)
Frame	6061-T6 Aluminum (Available in Mid-Step & Step-Over)
Fork	Rigid Aluminum, 700c
Rack	Lightweight Alloy Rear Rack / MIK-Compatible
